$8,500.00 – $12,200.00
| Model | MW-1500 | MW-2000 | MW-3000 |
| Laser Power | 1500W | 2000W | 3000W |
| Laser Type | Fiber Laser | ||
| Laser Generator | Raycus, BWT, Max | ||
| Platform Size | 800×1000mm | ||
| Z-Axis Height | 300mm | ||
| Rotation Axis Diameter | 100mm | ||
| Operate Mode | Automatic Welding | ||
| Cooling Type | Water Cooling | ||
| Working Environment Temperature Range | 0~40℃ | ||
| Working Environment Humidity Range | 5%~75% | ||
| Working Voltage | 380V | ||

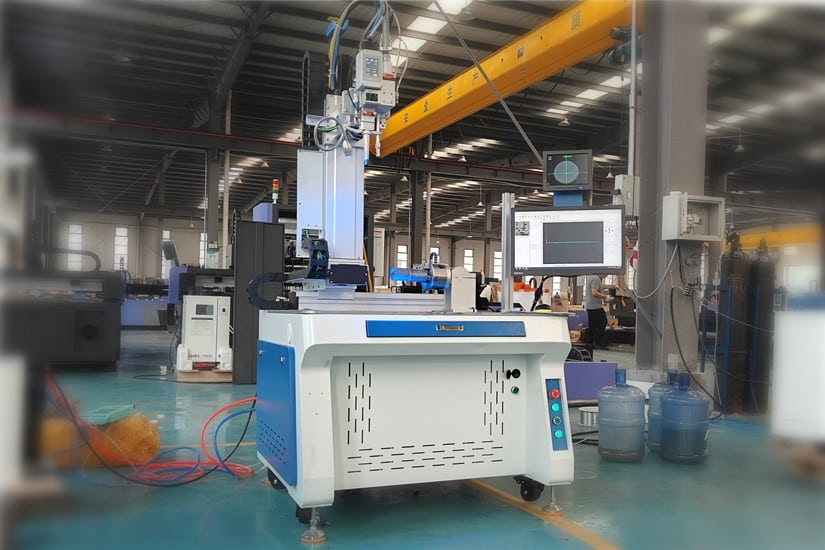

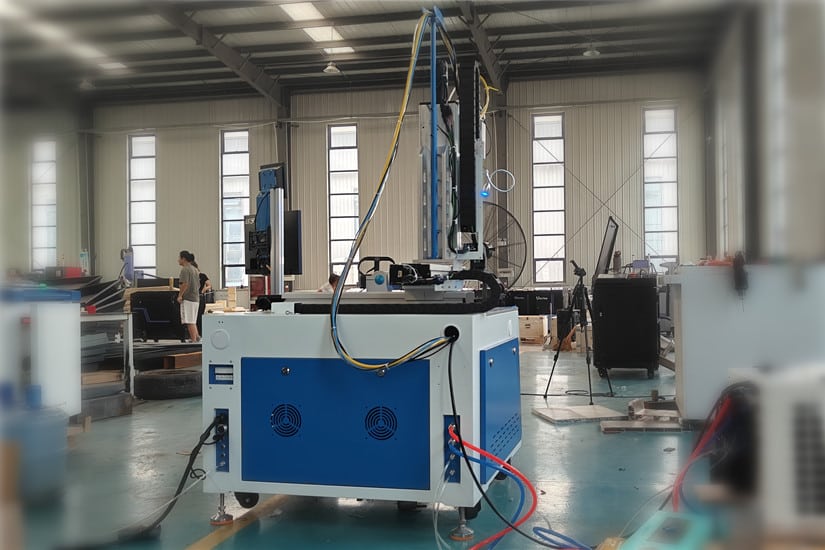

The CNC Platform Automatic Fiber Laser Welding Machine features a high-performance laser generator, available in brands like Max, BWT and Raycus. These generators provide reliable, precise welding with excellent beam quality, ensuring consistent results and high efficiency for various welding applications.

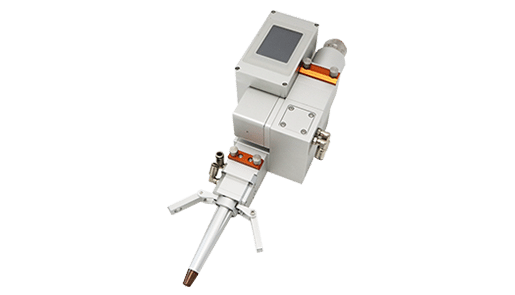

The double wobble laser welding head is a high-performance tool designed for precise and efficient laser welding applications. It features a double wobble function, which allows the laser beam to oscillate in different patterns, significantly improving welding quality by reducing defects such as cracks or weak joints.

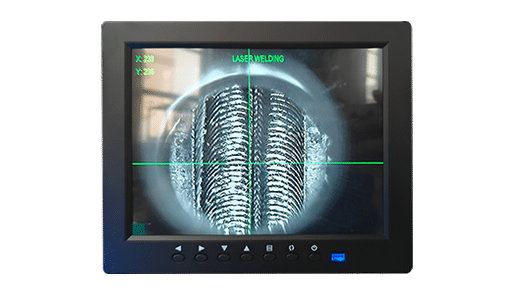

A CCD camera with a blue light lamp, achieve the welding piece visible. It allows operators to visually inspect and monitor the welding area in real time, ensuring high accuracy and consistency. The camera captures detailed images of the welding zone, which can be displayed on a screen, enabling remote control and adjustments without direct physical supervision.

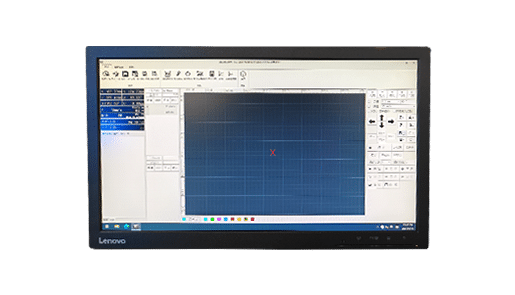

The CNC Platform Automatic Fiber Laser Welding Machine supports a variety of different swing types, automatic wire feeding and other functions. The system is easy to operate and can display real-time input and output IO status, alarm information and motion status. The process parameter library is stored in the laser cleaning and welding machine. Each mode corresponds to different parameter settings. After saving, you can directly select the corresponding mode next time without setting the parameters again.

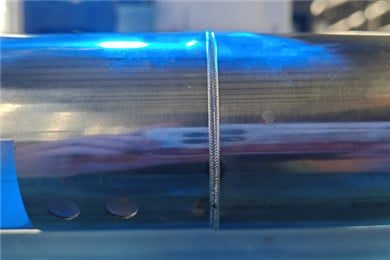

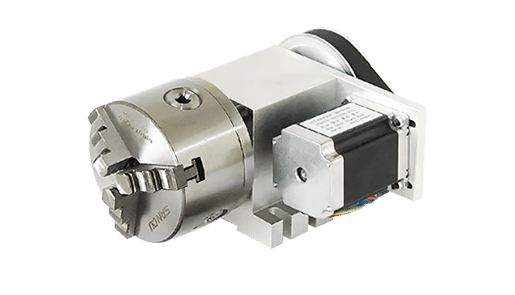

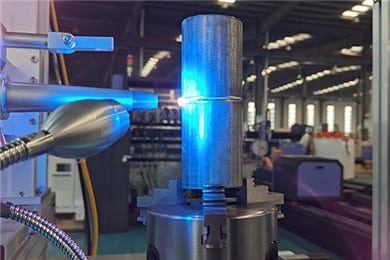

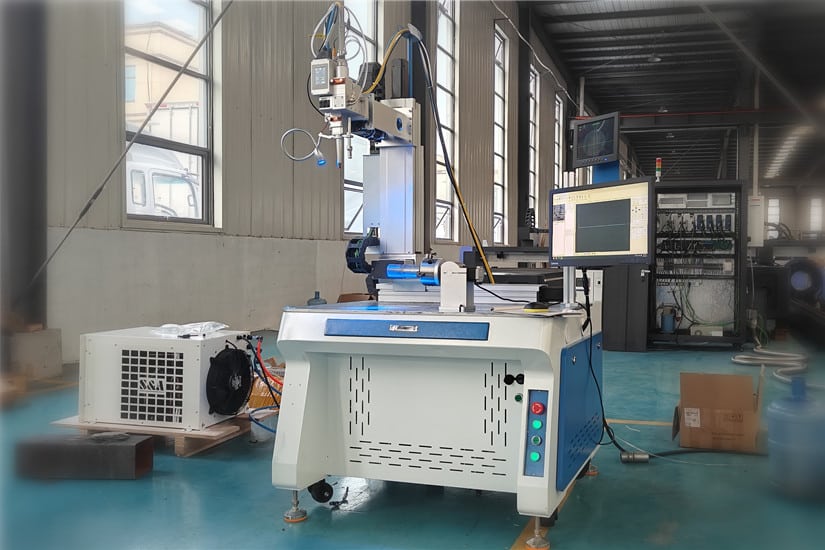

The rotary axis in a CNC Platform Automatic Fiber Laser Welding Machine is a specialized device designed to hold and rotate metal pipes or cylindrical workpieces during the welding process. The rotary axis continuously rotates the metal pipe, allowing the laser welding head to create a uniform weld seam around the entire circumference. This ensures consistent weld quality, especially for circular or complex geometric shapes.
| Feature | CNC Platform Automatic Laser Welding | TIG Welding | MIG Welding | Stick Welding |
| Operate Mode | Automatic welding | Manual welding | Manual welding | Manual welding |
| Welding Speed | High speed and efficiency | Slower, highly precise | Faster than TIG, but less precise | Moderate speed varies with skill |
| Precision | High precision with a double wobble mechanism | Very precise, suitable for thin materials | Good precision, less than laser | Lower precision, more suitable for thick materials |
| Heat Affected Zone | Minimal heat affected zone | Larger, potential for warping | Moderate heat affected zone | Larger, can cause significant warping |
| Material Versatility | Effective for various metals and alloys | Excellent for thin and high-quality metals | Versatile, suitable for various materials | Limited to certain materials and thicknesses |
| Post-Weld Cleanup | Minimal, clean welds | Requires cleanup and finishing | Moderate, depending on weld quality | Significant cleanup is needed, and more spatter |
| Operational Cost | Generally higher initial cost, low running costs | Moderate equipment cost, consumables needed | Lower initial cost, higher consumables cost | Lower initial cost, high consumables, and maintenance cost |
| Skill Level Required | Requires specialized training | High skill level needed for best results | Moderate skill level, easier to learn | Requires significant skill and experience |
| Safety | Requires proper eye protection and safety measures | Requires safety gear to protect from UV and heat | Requires safety gear to protect from spatter and UV | Requires protective gear and careful handling |
Maxcool CNC is committed to integrating the latest technological advancements into our machines. Our laser welding machines feature precise control, high efficiency, and superior performance, ensuring optimal cleaning results for various industrial applications.
Our machines are built to last, with robust construction and high-quality components that guarantee long-term reliability and minimal maintenance. You can trust Maxcool CNC to provide equipment that withstands even the toughest environments.
From pre-sales consultation to after-sales technical assistance, we are with you every step of the way. Our dedicated support team ensures you have all the information and help you need to maximize the value of your investment.
Maxcool CNC’s laser welding machines are designed with energy efficiency in mind, reducing power consumption without compromising performance. This not only lowers operational costs but also contributes to a more sustainable future.
